- Pamatplate ASROCK B550 B550M Pro4 Black (90-MXBDK0-A0UAYZ)

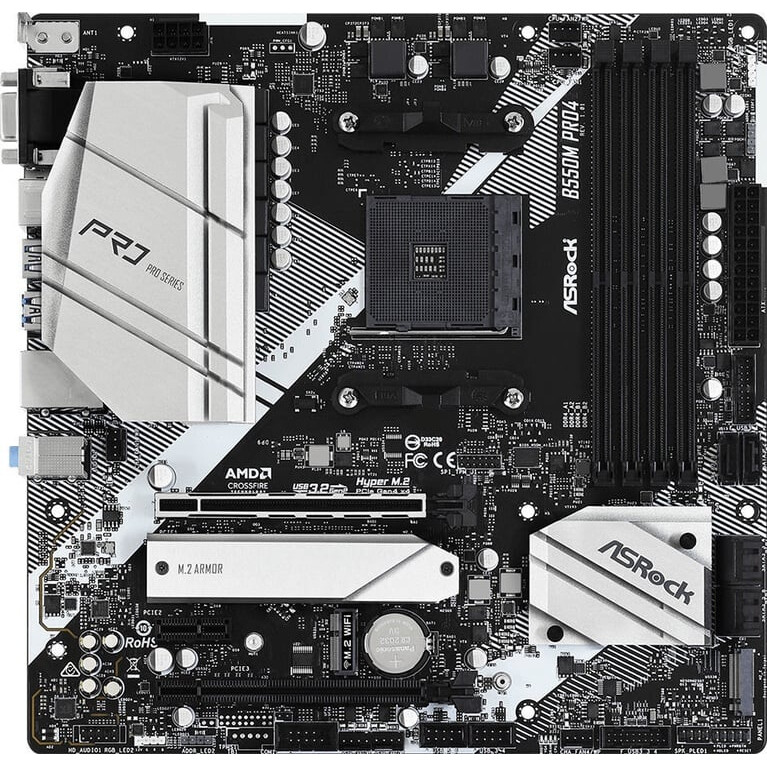

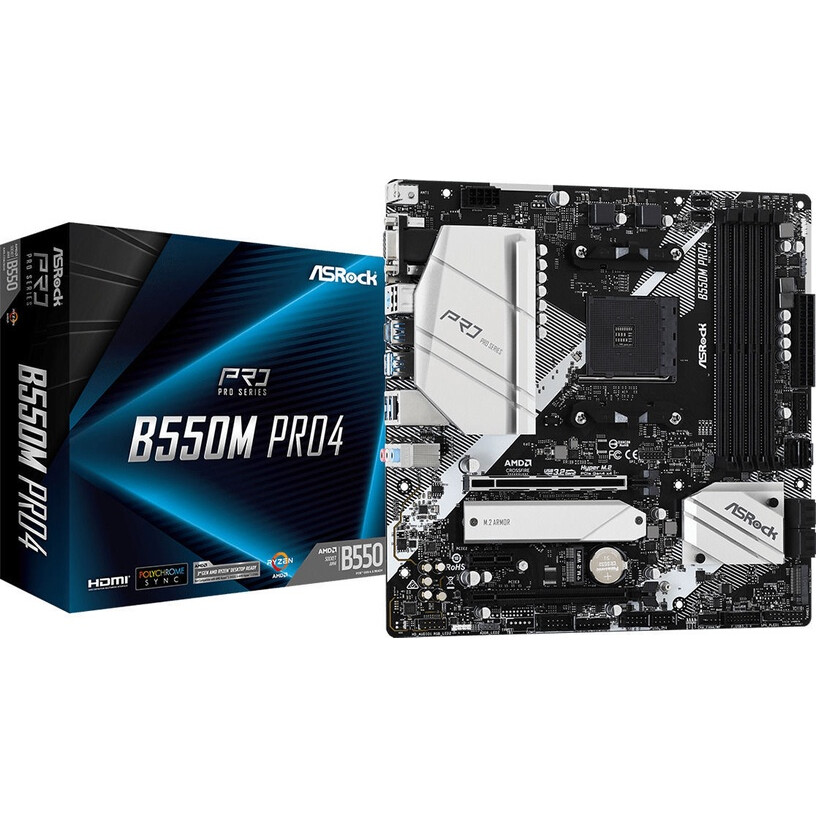

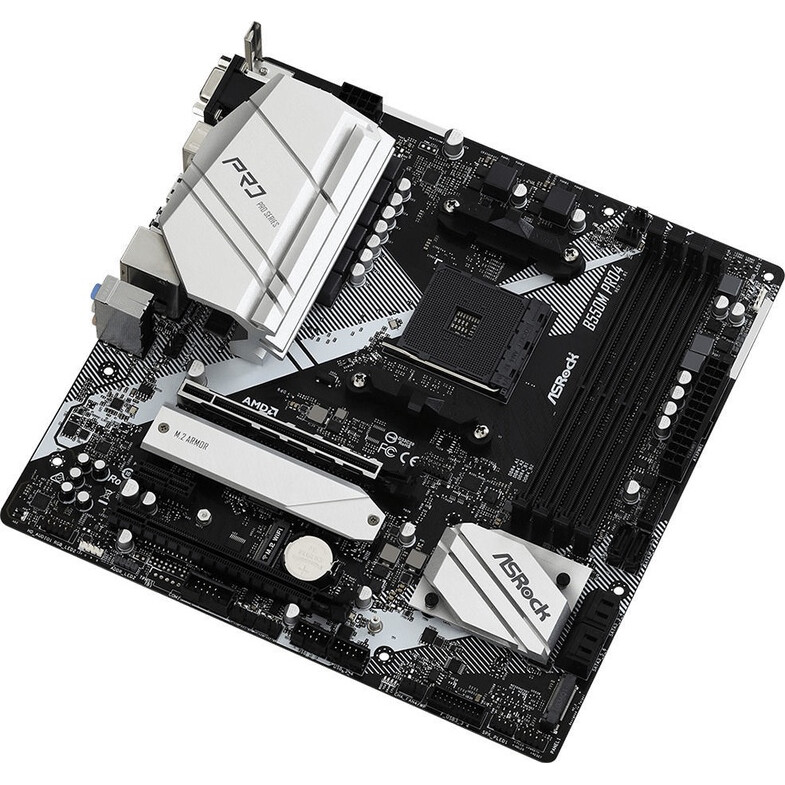

Pamatplate ASROCK B550 B550M Pro4 Black (90-MXBDK0-A0UAYZ)
ID: 1342
Īsi par preci
- Ligzda: AM4
- Mikroshēmu kopa (Chipset): AMD B550
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, PCIe 3.0 x1, x2 x PCI-E x16, PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps)
- Ligzdas aizmugurējā panelī: PS/2, USB 2.0, USB 3.0, LAN, audio jacks, VGA, HDMI, DisplayPort, RJ-45
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90-MXBDK0-A0UAYZ
Ligzda ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B550
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, USB 2.0, USB 3.0, LAN, audio jacks, VGA, HDMI, DisplayPort, RJ-45
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC1200
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E 3.0 x16, PCIe 3.0 x1, x2 x PCI-E x16, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
AMD Ryzen series APUs (Cezanne and Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
AMD Ryzen series APUs (Picasso)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mbps)
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek RTL8111H
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-II (3 Gb/s), x6 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Papildu informācija ........................................................................................................................................................................................................
ASRock USB 3.2 Gen2. - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s). - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s). ASRock Super Alloy. - XXL Aluminum Alloy Heatsink. - Premium 50A Power Choke. - Sapphire Black PCB. - High Density Glass Fabric PCB. - 2oz Copper PCB. ASRock Steel Slot Gen4. ASRock Full Coverage M.2 Heatsink. ASRock Hyper M.2 (PCIe Gen4x4). ASRock POST Status Checker (PSC). ASRock Full Spike Protection (for all USB, Audio, LAN Ports). ASRock Live Update & APP Shop
Formfaktors ........................................................................................................................................................................................................
mATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
