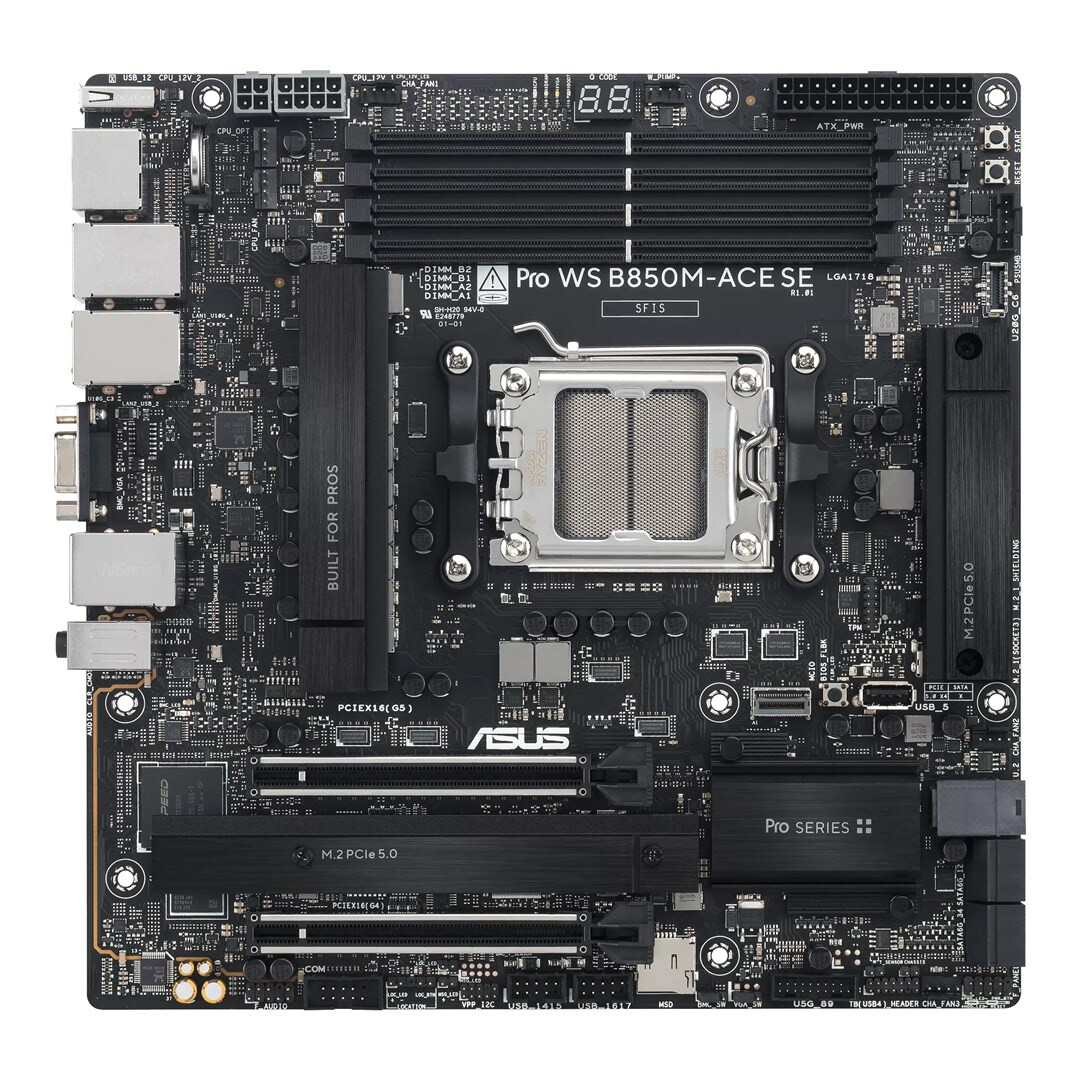

Pamatplate Asus PRO WS B850M-ACE SE (90MB1MN0-M0EAY0)
ID: 36444
Īsi par preci
- Ligzda: AM5
- Mikroshēmu kopa (Chipset): AMD B850
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), 10 Gigabit Ethernet (10000 Mbps)

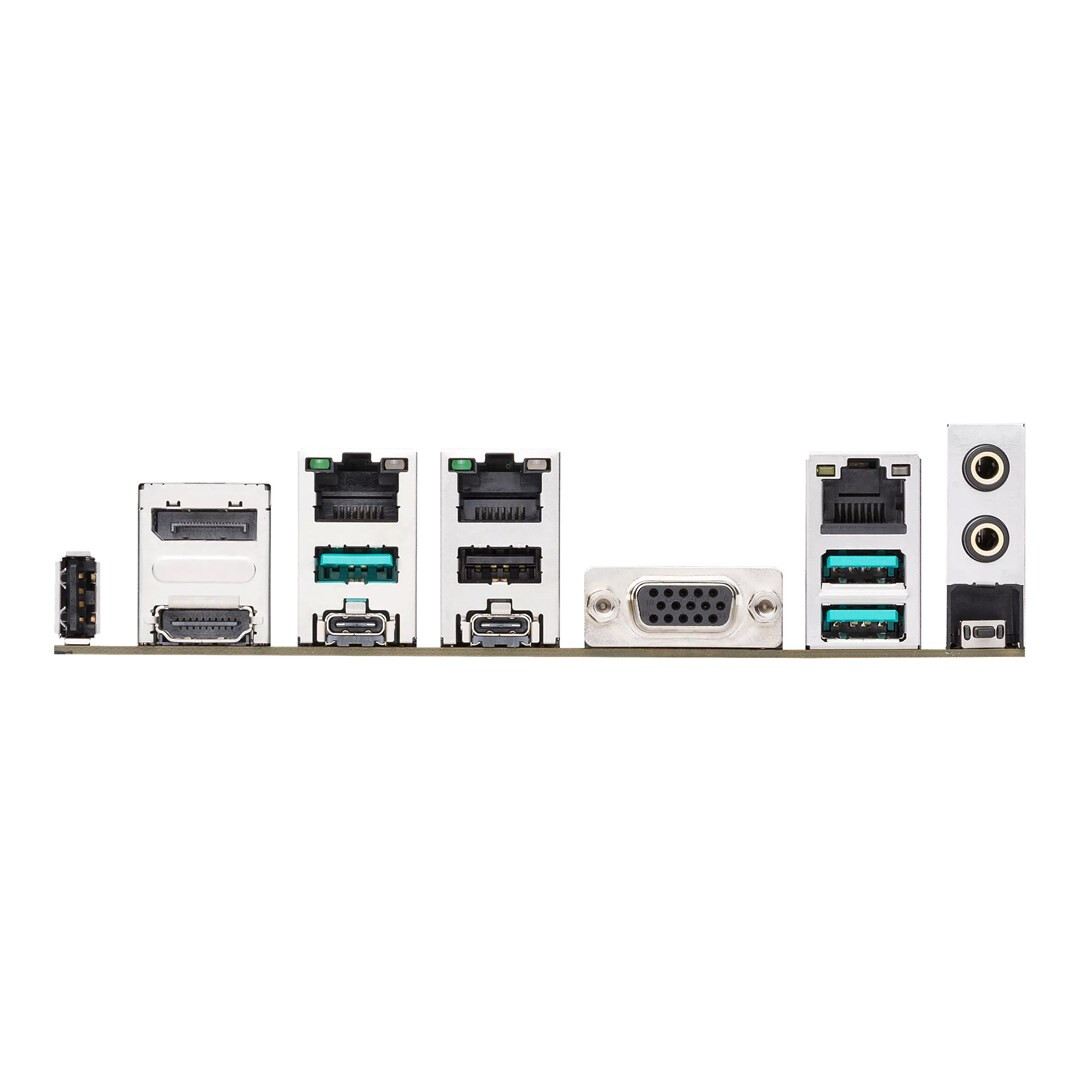

- Ligzdas aizmugurējā panelī: 2 x USB 2.0, 2 x USB Type-C, 2 x audio jacks, 3 x USB 3.2 Gen2, VGA, HDMI, DisplayPort
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1MN0-M0EAY0
Ligzda ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B850
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB Type-C, 2 x audio jacks, 3 x USB 3.2 Gen2, VGA, HDMI, DisplayPort
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), 10 Gigabit Ethernet (10000 Mbps)
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E M.2
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
3 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
4-pin, 8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
3 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C
Formfaktors ........................................................................................................................................................................................................
mATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
