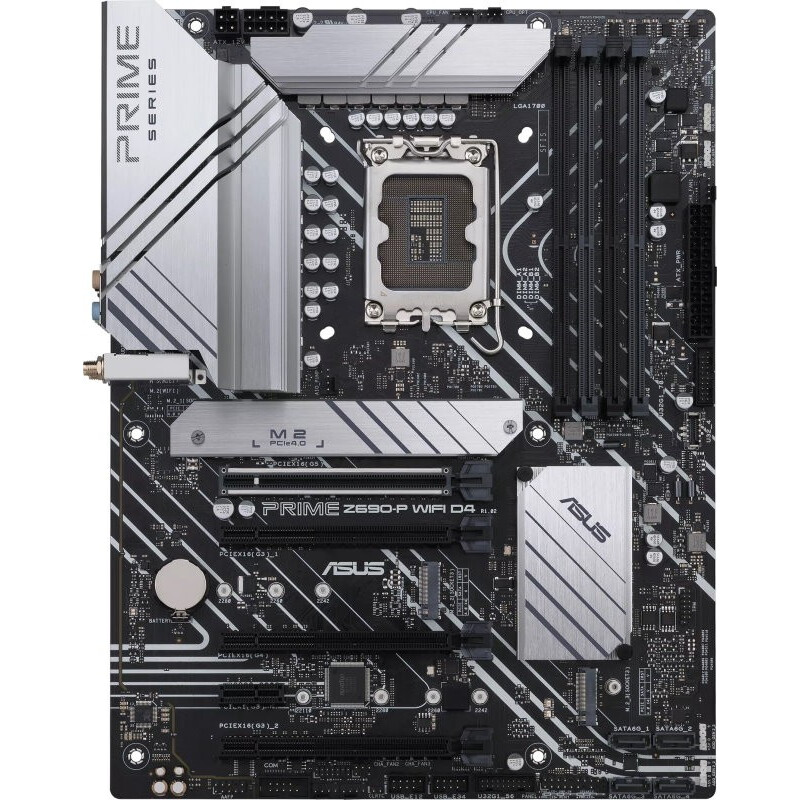

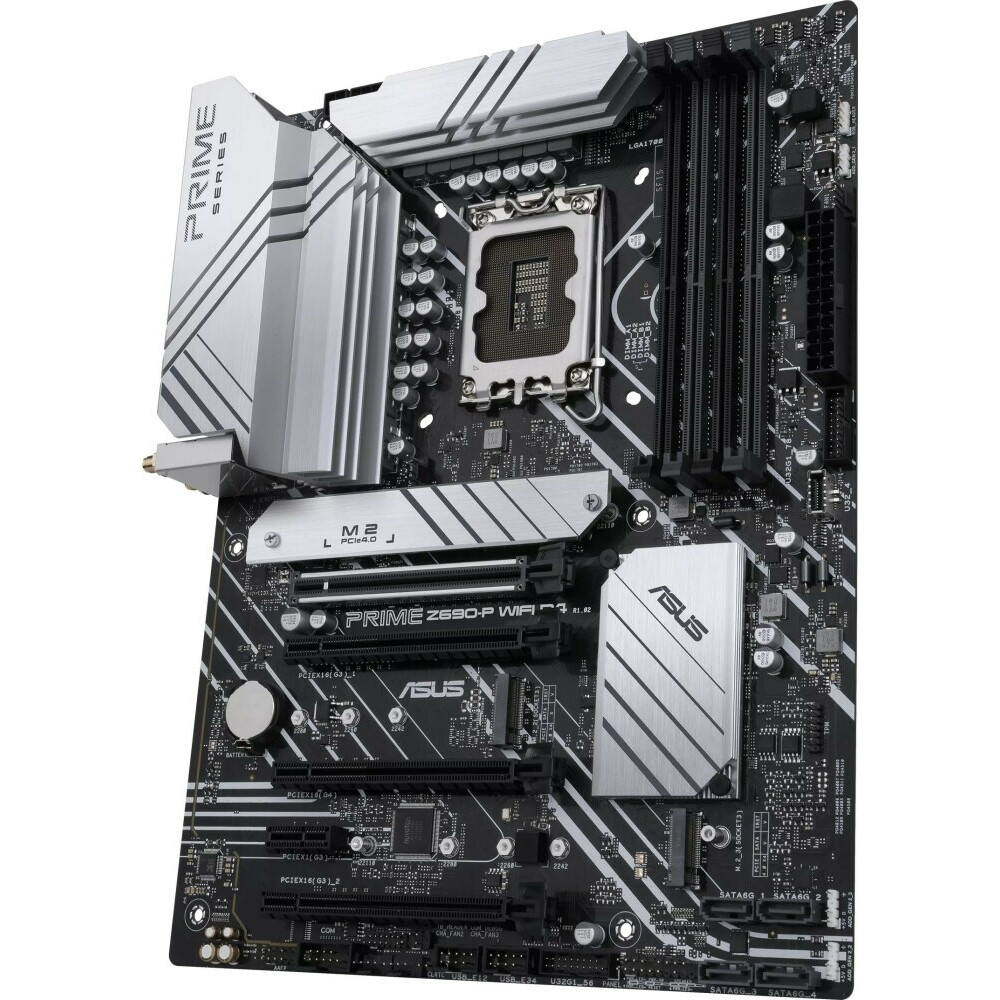

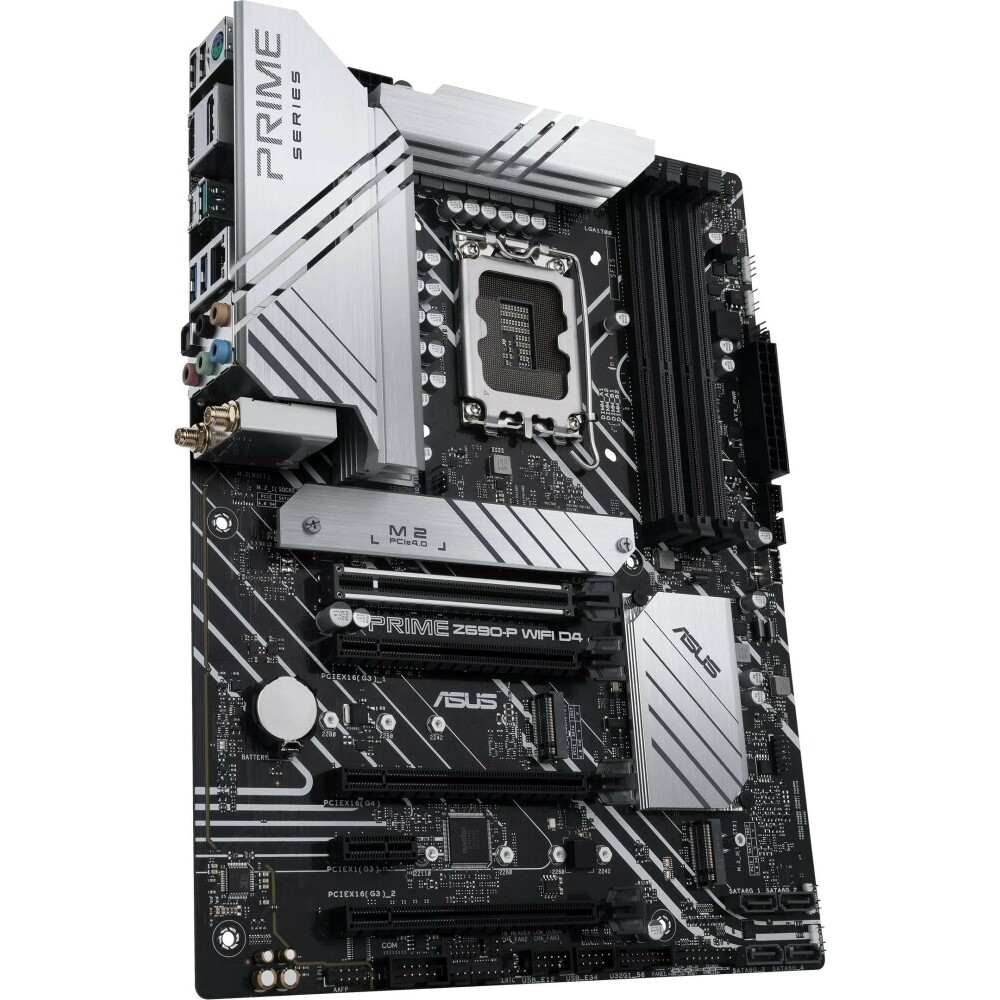

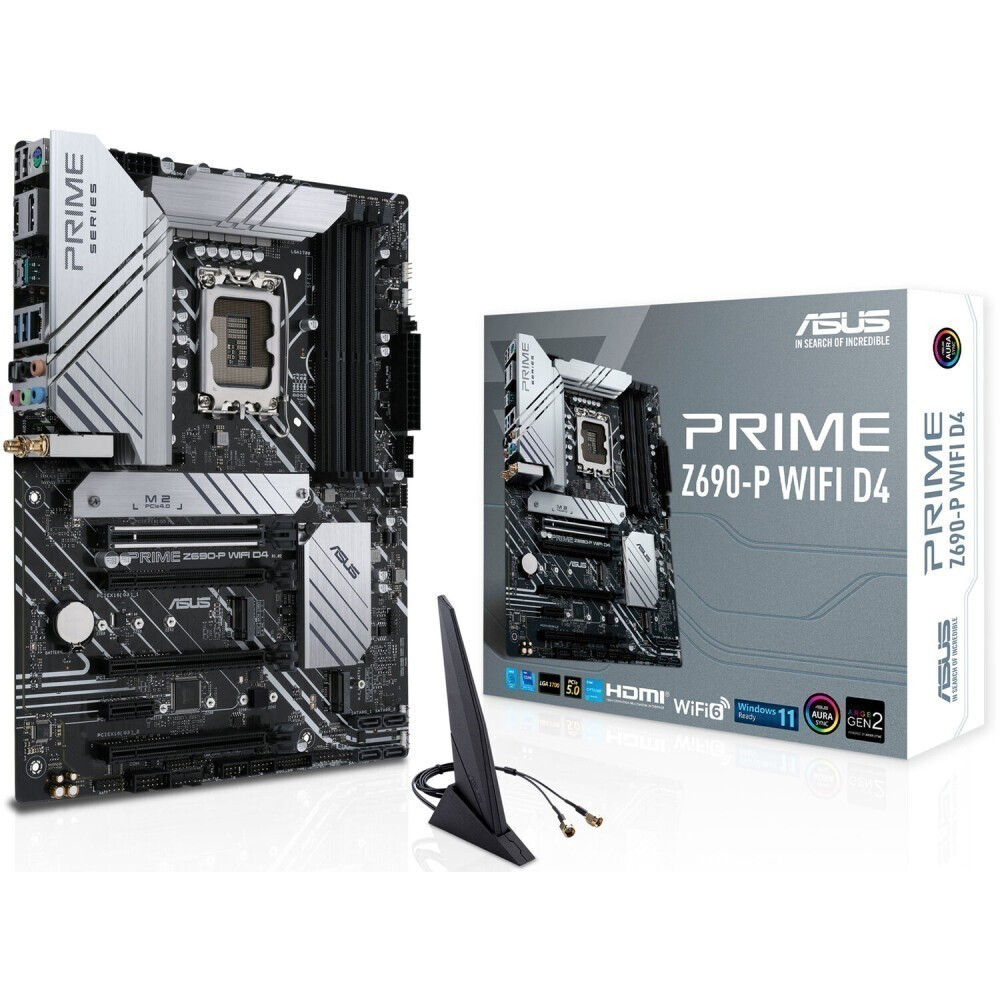

Pamatplate ASUS PRIME Z690-P WIFI D4

ID: 414049

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z690
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E 3.0 x16, PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Formfaktors: ATX

Pilnas specifikācijas

19.260,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASUS

Ražotāja kods ........................................................................................................................................................................................................

PRIME Z690-P WIFI D4

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z690

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E 3.0 x16, PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Key M, 2242/2260/2280/22110 (PCIe 4.0 x4);
- Key M, 2242/2260/2280 (PCIe 4.0 x4);
- Key M, 2242/2260/2280/22110 (PCIe 4.0 x4 & SATA).

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

x16/x4/x4/x4

Saskarnes

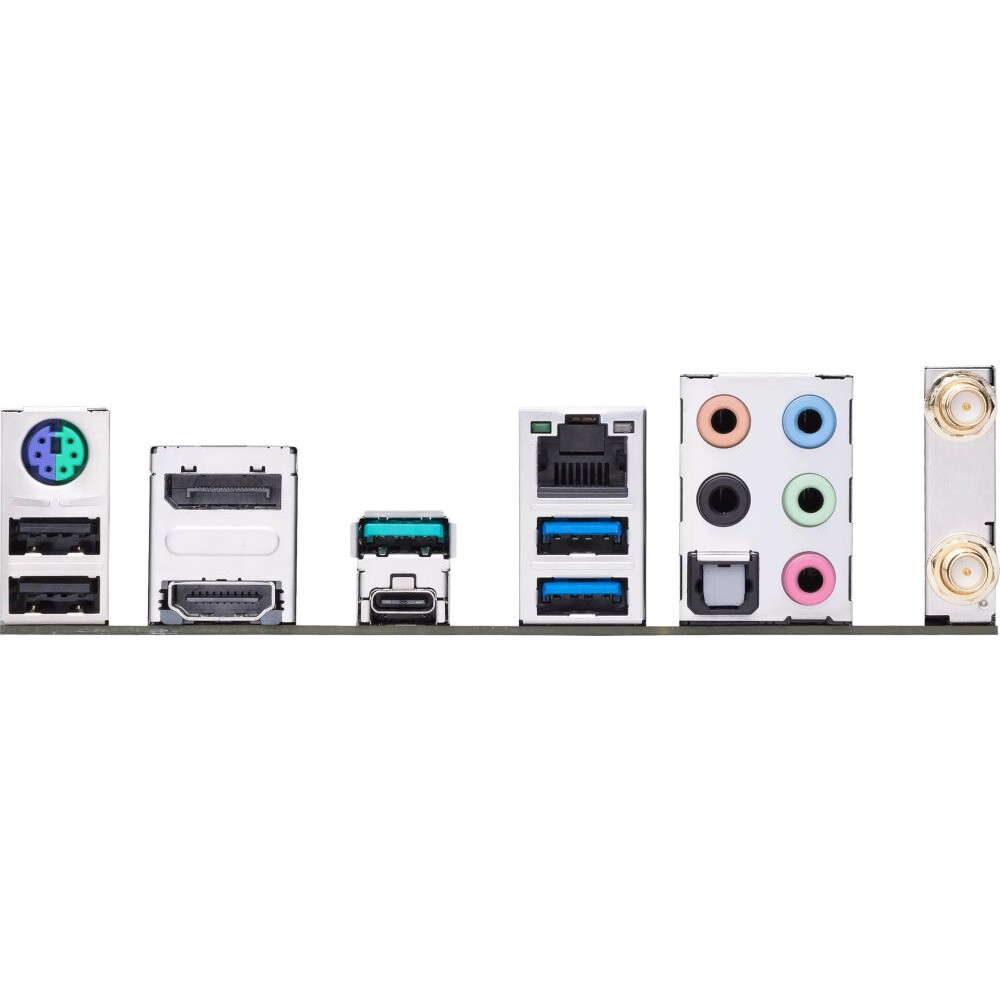

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

3 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

4-pin, 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, pelēks

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asus.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
