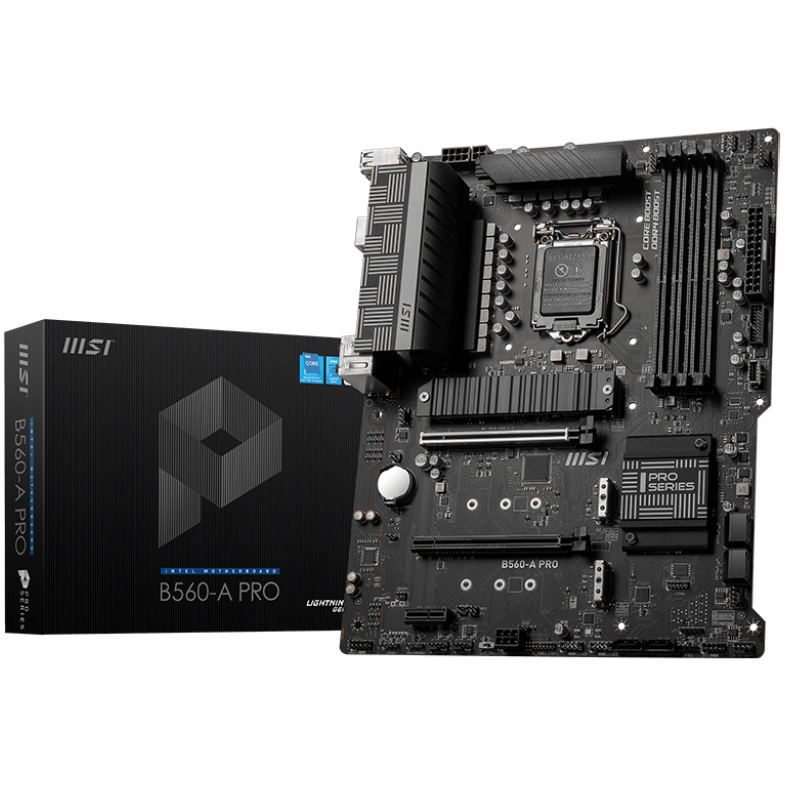

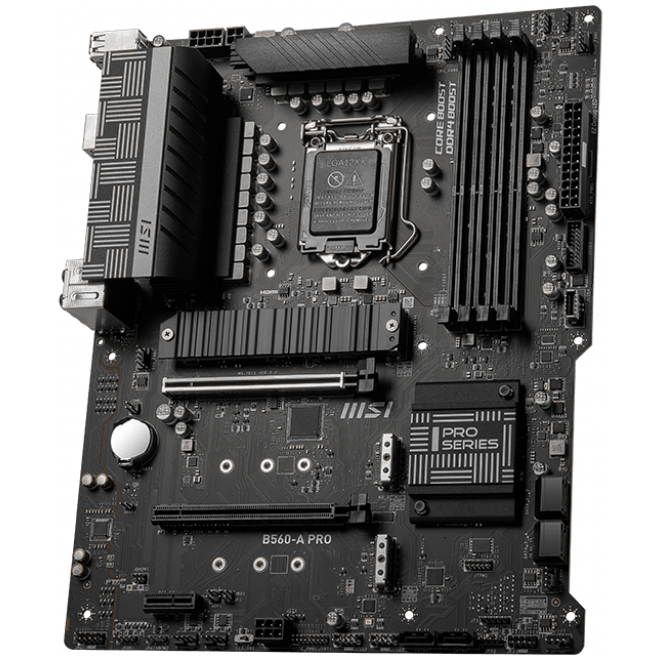

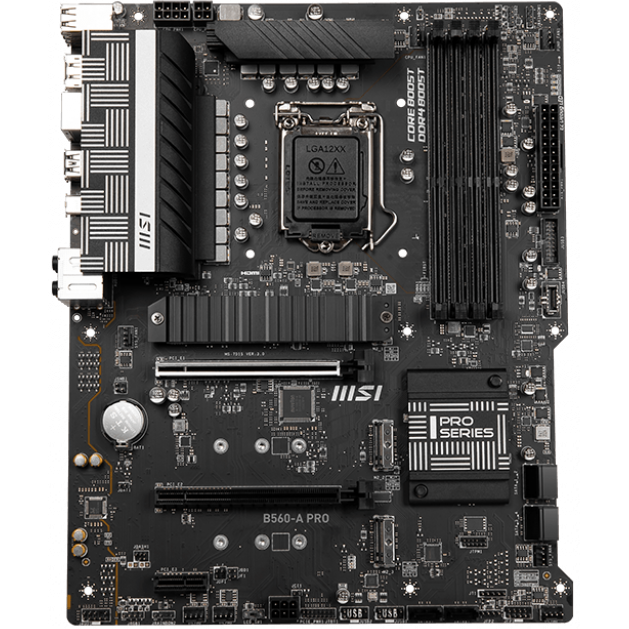

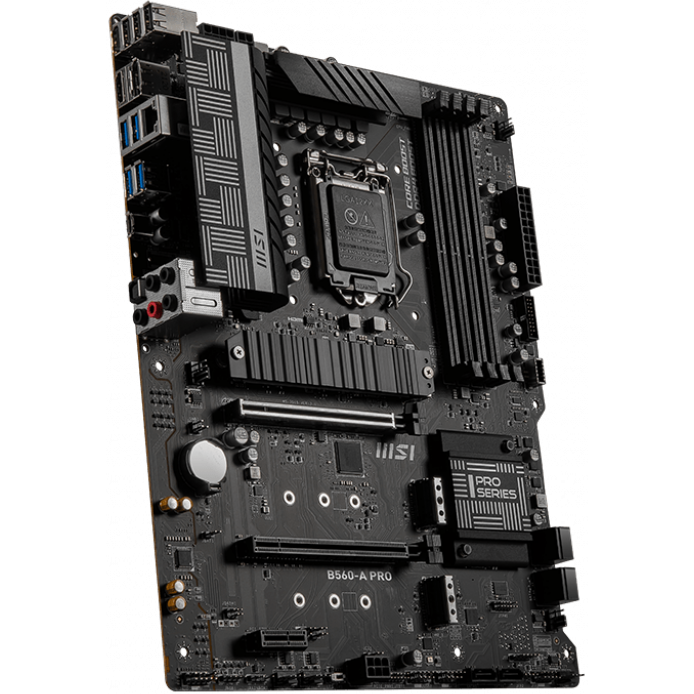

Pamatplate MSI B560-A PRO

ID: 415591

Īsi par preci

Ligzda: LGA 1200
Mikroshēmu kopa (Chipset): Intel B560
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Ligzdas aizmugurējā panelī: 4 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Formfaktors: ATX

Pilnas specifikācijas

11.560,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

B560-A PRO

Ligzda ........................................................................................................................................................................................................

LGA 1200

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B560

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/s)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8125B

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Key M, 2242/2260/2280/22110 (PCIe 4.0 x4);
- Key M, 2242/2260/2280 (PCIe 3.0 x4 & SATA);
- Key M, 2242/2260/2280 (PCIe 3.0 x4).

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

x16/x4

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

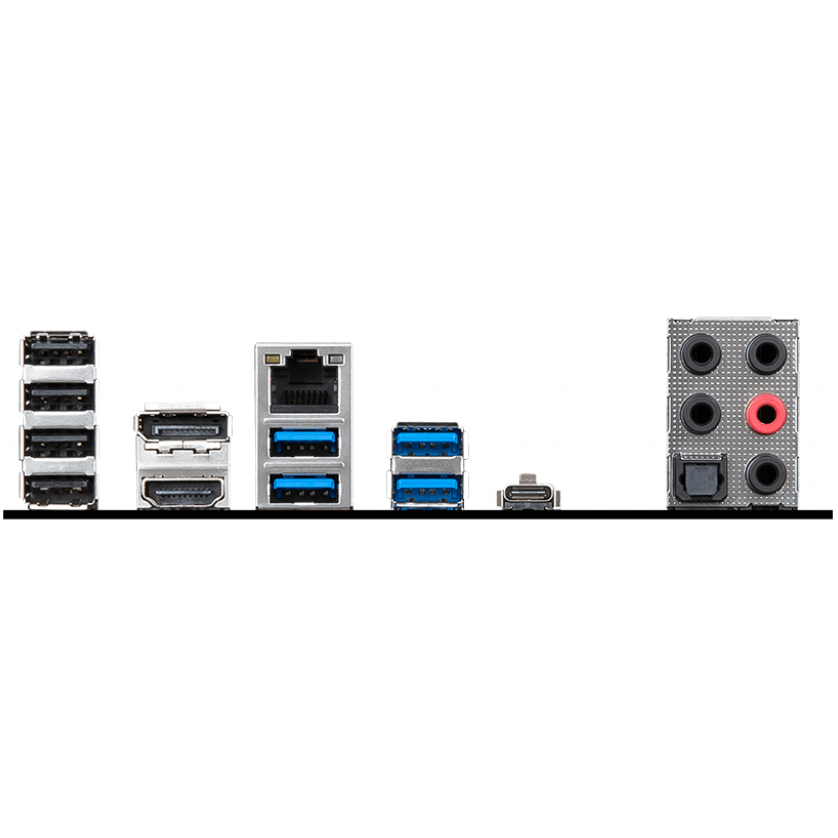

4 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

5 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

4-pin, 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

2 x 4-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
