- Pamatplate Gigabyte X870E AORUS MASTER X3D ICE White

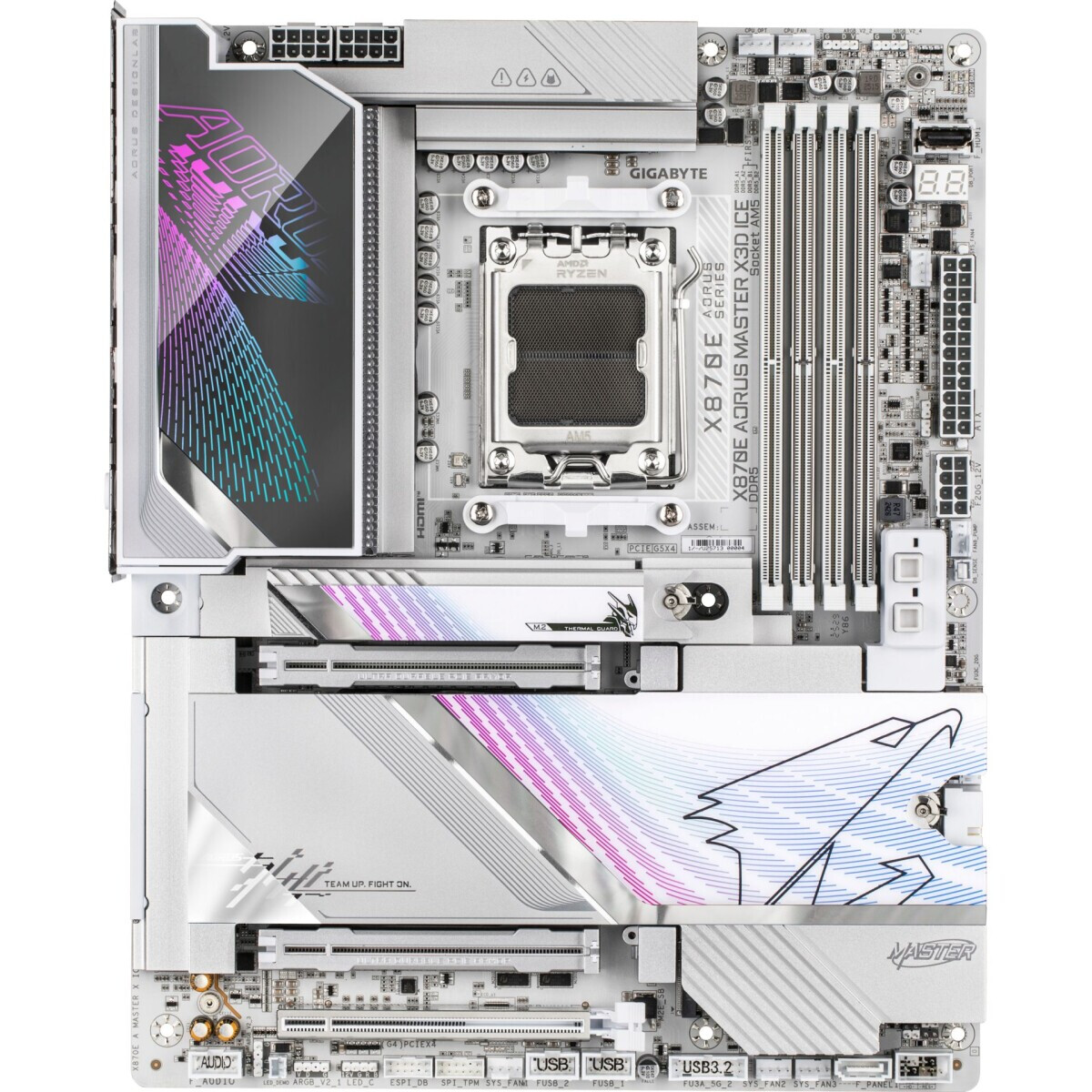

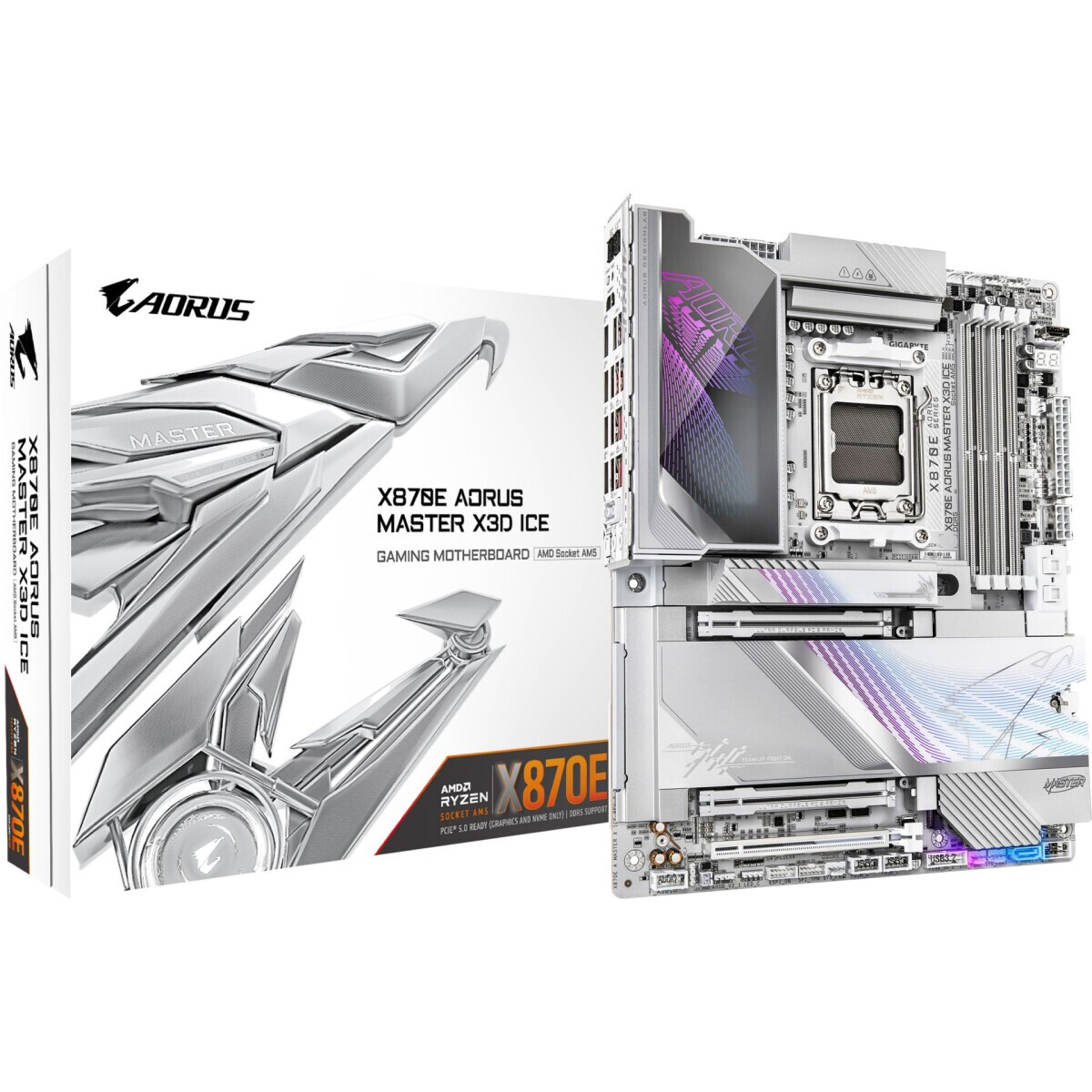

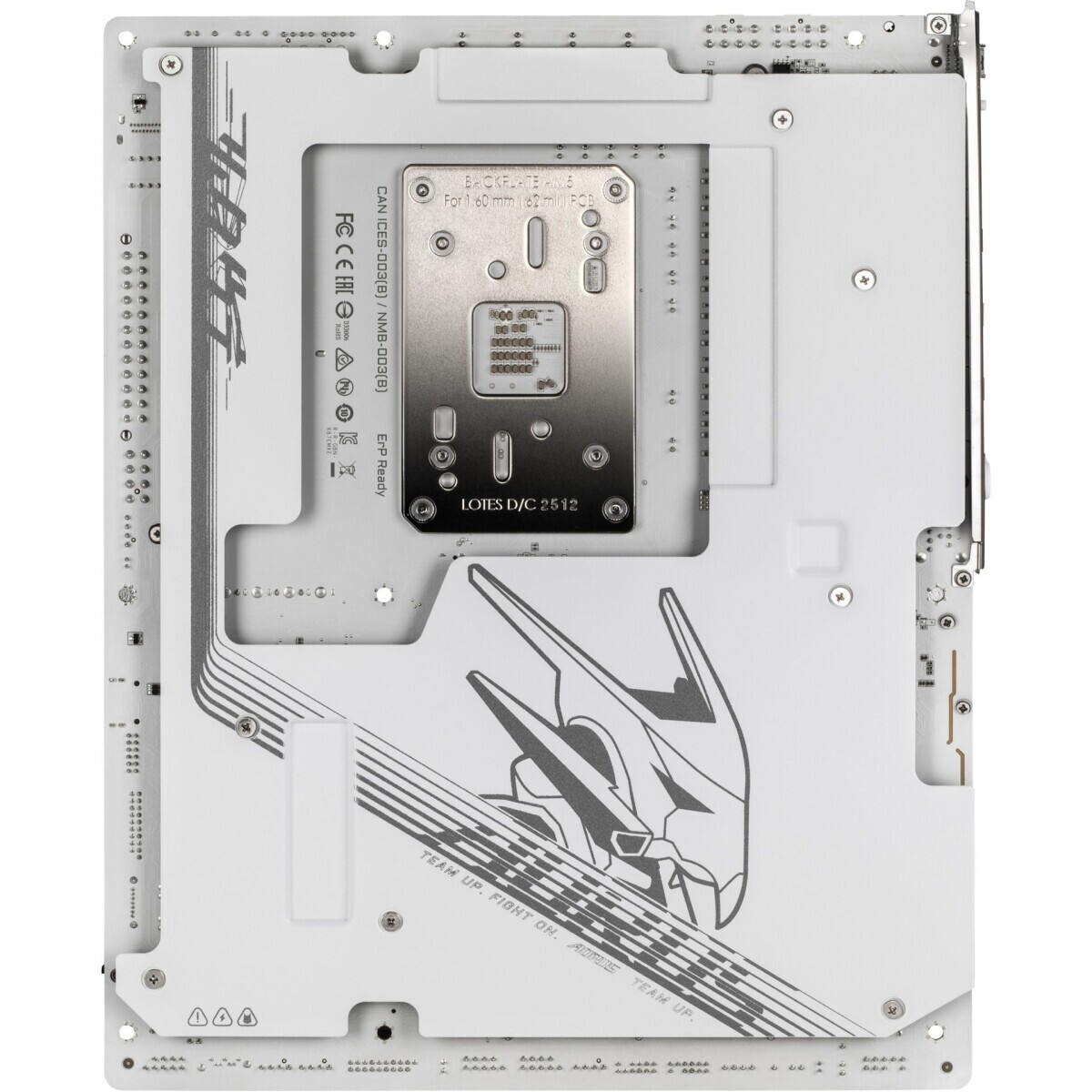

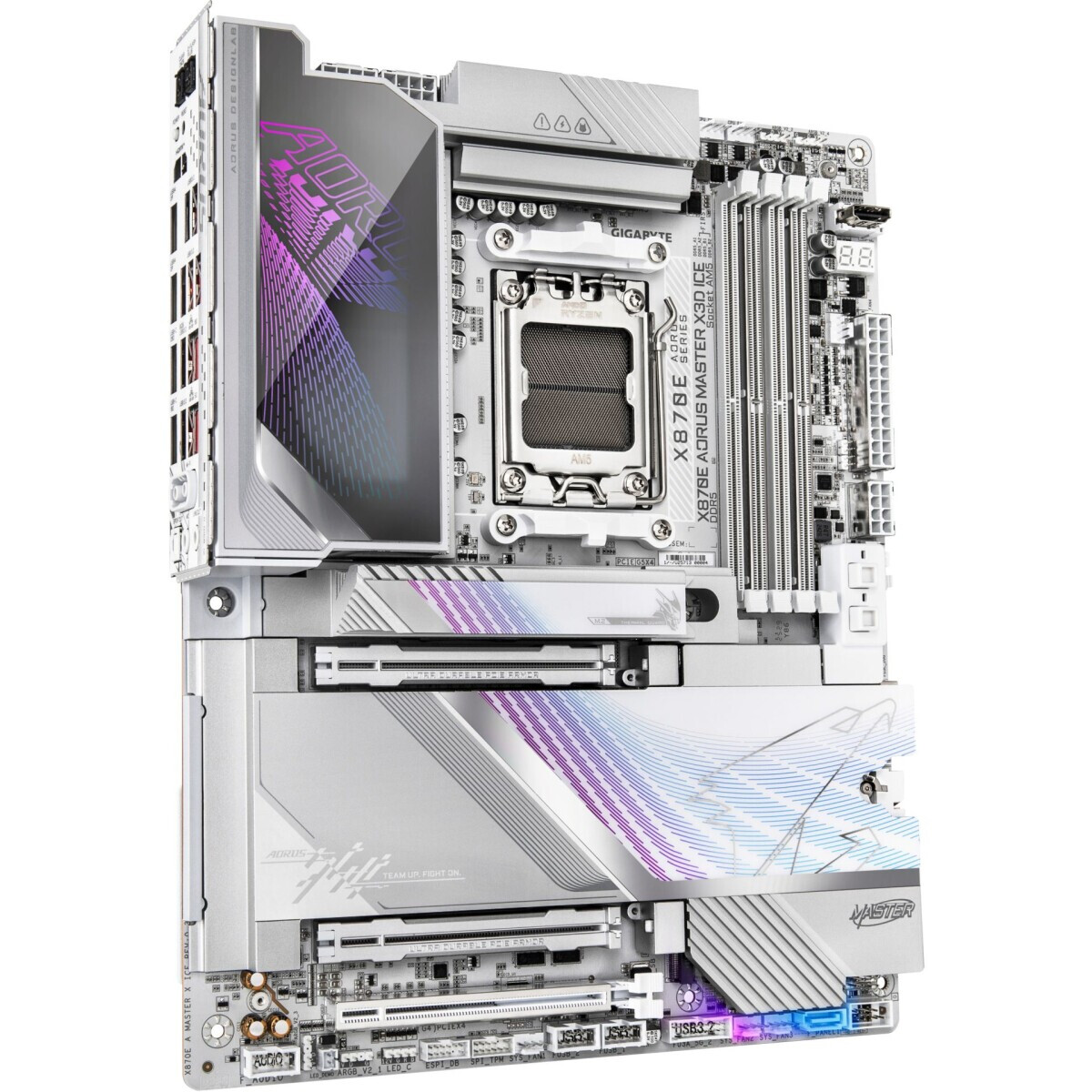

Pamatplate Gigabyte X870E AORUS MASTER X3D ICE White
ID: 41827
Īsi par preci
- Ligzda: AM5
- Mikroshēmu kopa (Chipset): AMD X870E
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: 2 x PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), 5 Gigabit Ethernet (100/1000/2500/5000 Mbps), 10 Gigabit Ethernet (10000 Mbps), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 2 x USB4 Gen 3x2, 2 x LAN, 2 x audio jacks, 7 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, 2 x RJ-45, S/PDIF (optiskais)
- Apgaismojums: Jā
- Formfaktors: ATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
X870E A MASTER X ICE
Ligzda ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD X870E
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
2 x PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC1220-VB, /ESS 9118
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Saskarnes

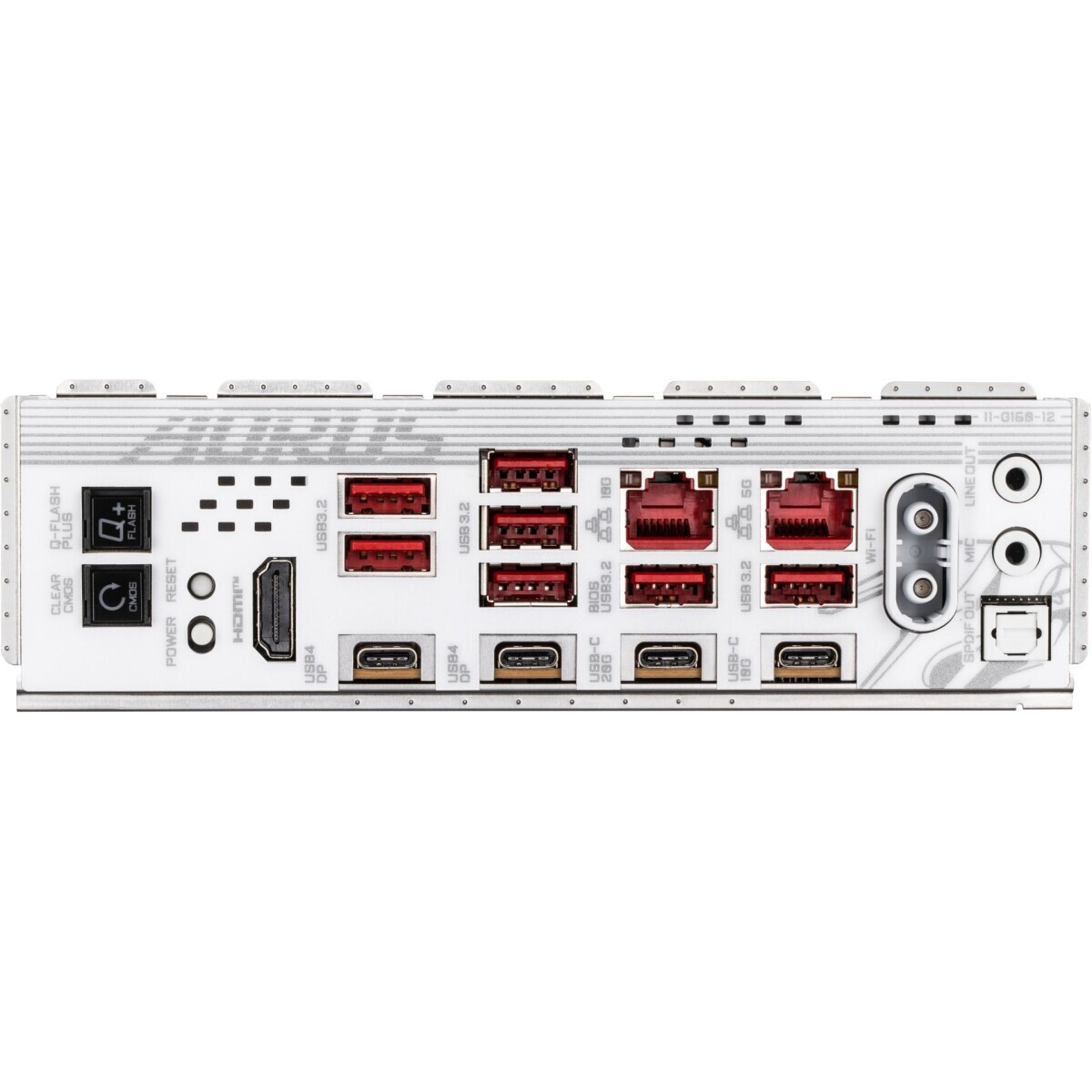

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x USB4 Gen 3x2, 2 x LAN, 2 x audio jacks, 7 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, 2 x RJ-45, S/PDIF (optiskais)
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), 5 Gigabit Ethernet (100/1000/2500/5000 Mbps), 10 Gigabit Ethernet (10000 Mbps), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek 8126 5Gbps, Realtek RTL8127
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Apgaismojums ........................................................................................................................................................................................................
jā
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
balts, sudraba
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
